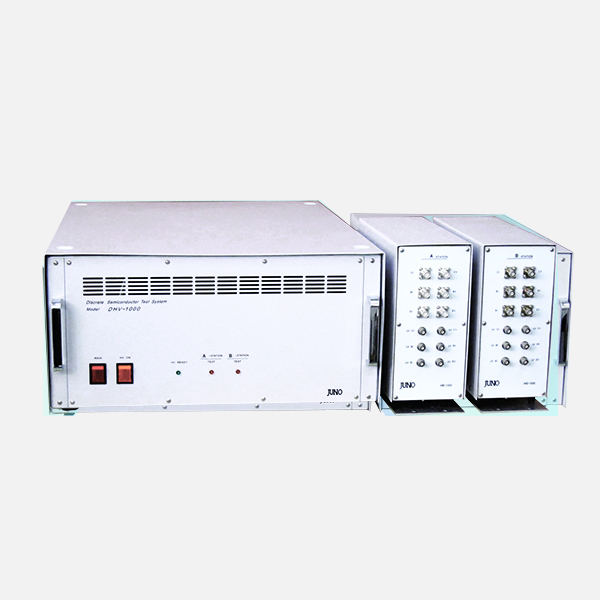

DHV-1000 High Voltage Tester
DHV-1000 is an optional upgrade to DTS-1000 test system, allowing 3000V when testing leakage current or withstand voltage. This upgrade option can only be used in combination with DTS-1000.
Specifications
| Voltage / Current | 3000V/10mA |
| Applicable Devices | diode, zener diode, transistor, MOS-FET, bonded FET |
| Number of channels | Maximum 2 channels |
| Relay start time | 5ms |
| Exterior dimensions | DHV-1 000 500 (width) × 670 (depth) × 250 (height) mm |
| VHD-1 000 116 (width) × 305 (depth) × 272 (height) mm | |
| Power supply voltage | AC200V to AC240V 50Hz/60Hz |
| Power consumption | 400VA |
Test conditions: temperature: 25℃±5℃; Humidity: below 60%
Download: Test Tables (precision and range)
